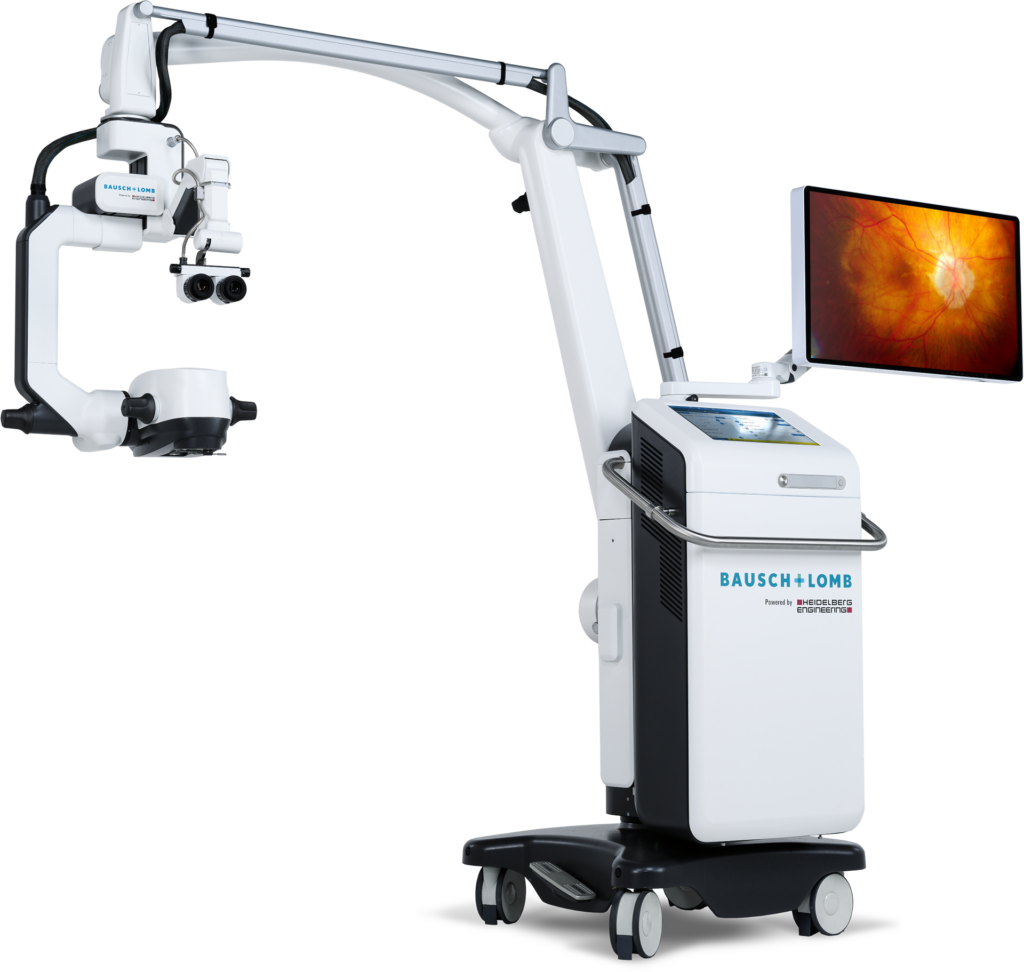

SeeLuma™
SeeLuma™ promises to transform the way ophthalmic surgery is performed. Its innovative digital and 3D technology have set new standards in surgical precision and are empowering healthcare professionals to deliver the best outcomes for their patients.
The world’s first digital binoculars, intuitive user interfaces, and a design that allows surgeons to look straight at a heads-up monitor without having to twist their neck, make SeeLuma™ a game-changer in ophthalmic surgery.
Digital
Binoculars
Use the full-digital binoculars like analog binoculars, with all the additional benefits of having a 3D system.
Adaptive Glaucoma
Focusing
Binoculars do not require repositioning when the microscope is titled, due to a separate suspension arm, XYZ coupling enables intuitive focusing during MIGS.
Optimized
Ergonomics
The heads-up display option and the digital binoculars have been specifically designed for optimal posture.
Assist
Mode
Draw annotations and surgical information into the surgeon's cockpit.
Draw annotations and surgical information into the surgeon's cockpit.
Intuitive User
Interface
The touchscreen user interface allows for an optimal workflow and intuitive control by the surgical team.

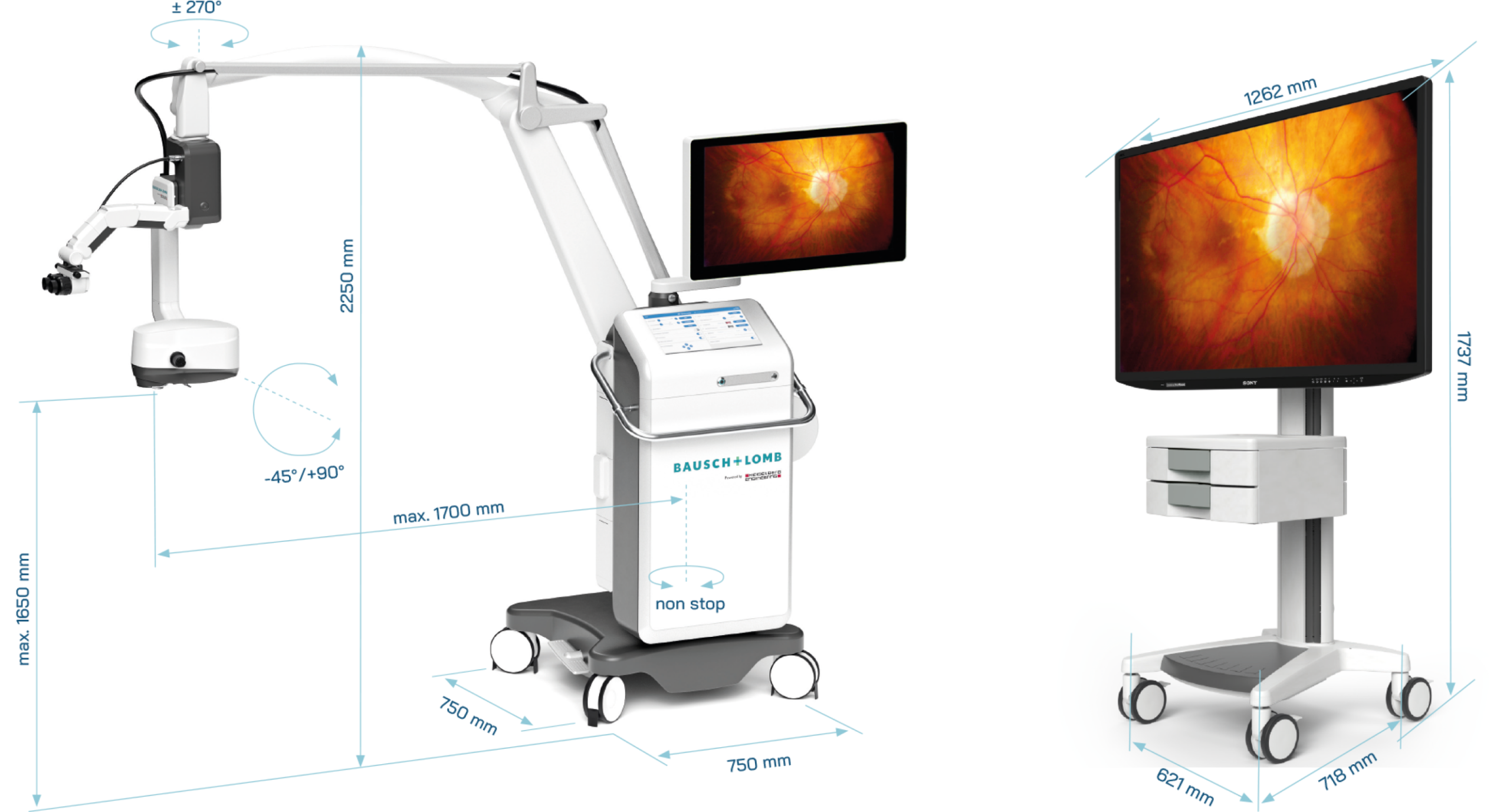

Technical
specifications
Digital Binocular
55“ 3D 4K monitor
31“ 3D 4K monitor
2x 4K (3840 x 2160 pixels)
Working distance
200 mm
Focus range
90 mm (in 0° position)
Magnification
Motorized optical 6x zoom
Illumination
2x LED
Build-In Keratoscope
Yes
Surgical Annotations
Yes
Yes
Physical filters
Retina protection filter (built-in)
Retina protection plate (built-in)
532 nm laser filter (attachable)
Display option for observers
55“/ 31“ 3D 4K monitors
4x wireless 2D/3D monitors,
up to 4K resolution
Recording
4K-UHD (3840×2160), 60fps
Full-HD (1920×1080), 60fps
Full-HD (1920×1080), 30fps
Interfaces
1x HDMI optical output
2x HD-SDI in
2x HD-SDI out
Wireless video transmitter
USB 3.2 gen 2
